Lamp eigenschappen
Zoom6° - 66° motorised linear zoom
Lichtbron

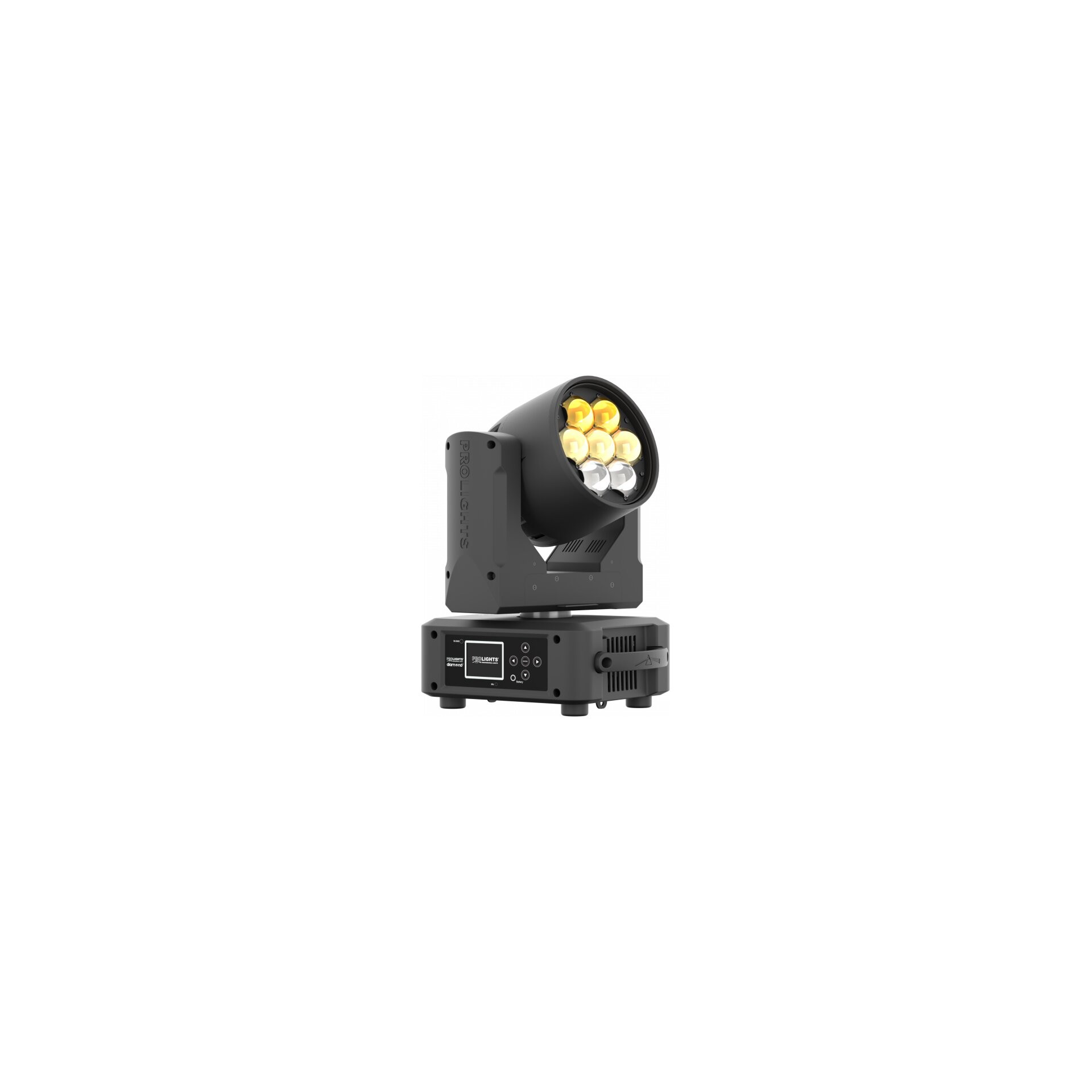

Lichtbron7x15W RGBW Osram Ostar LEDs
CCT CCT control through dedicated DMX channel
Lux(6°) 10'980 lx - (66°) 745lx @3 m full
Levensverwachting lichtbron > 50.000 h
Optiek
Lens diameter126mm
Lens type honeycomb gapless plano-convex optics
Kleuren
Kleurmenging RGBW / FC
Wit macro's2.000 K ~ 10.000K
Kleurenwiel virtual colour wheel with macros
Effecten
FX generator adjustable foreground/background colour, index, speed, direction
Behuizing
Pan angle630°
Tilt angle265°
Kleur behuizing black, white finishing available
Pan/Tilt resolutiebit 8 / 16bit
Materiaal aluminium structure with hi-resistance polycarbonate cover
Aansturing
Protocollen DMX512, RDM
DMX kanalen18 / 19 / 20 / 26 / 50channel
Master/Slave for synchronised operation of more units linked in a chain

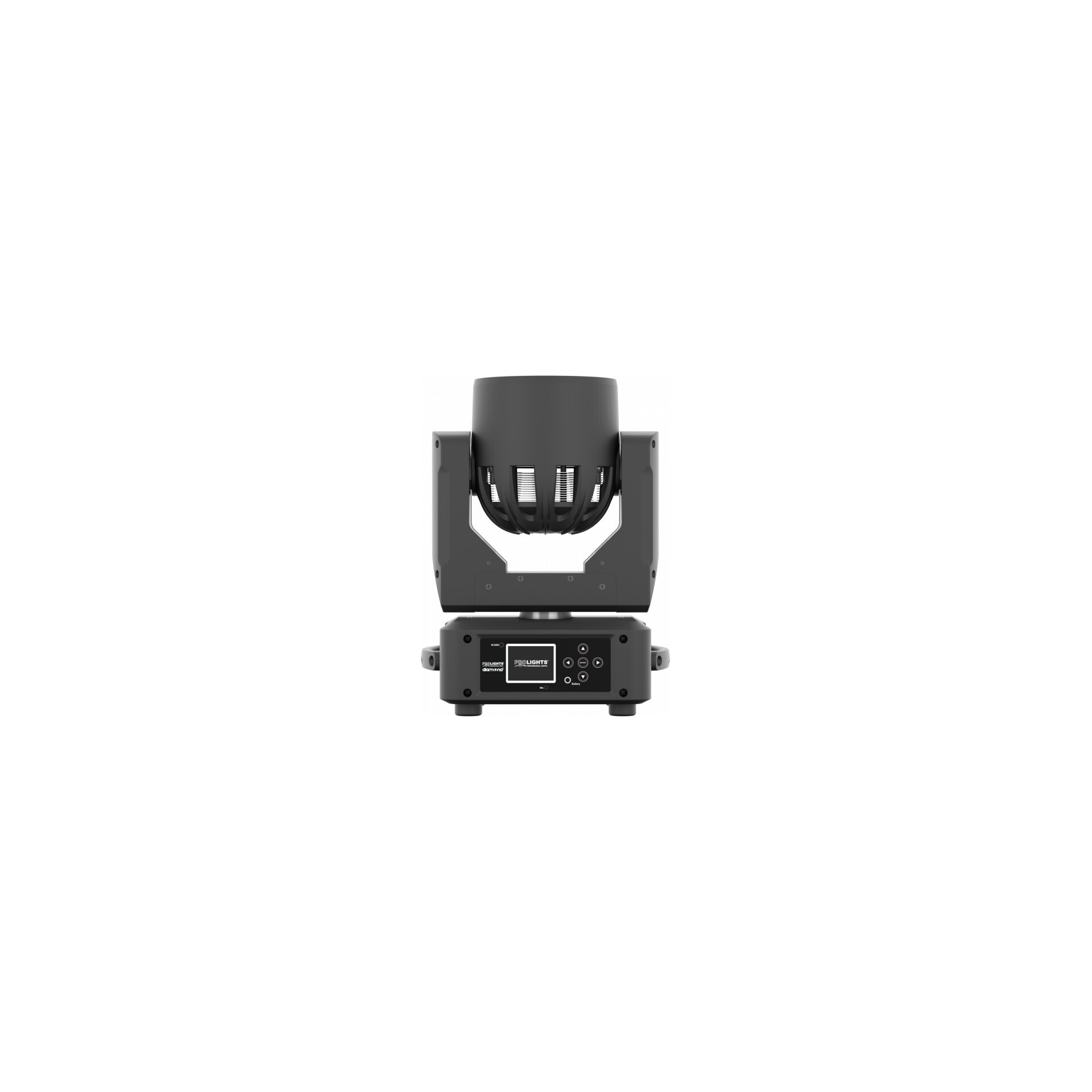

Display LCD high resolution colour display
Firmware upgrade yes, via USB - DMX interface (UPBOX2) not included
W-DMX optional, wireless solution receiver
RDM RDM ready for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Strobe / shutter1 - 25 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free operation
Slaapstand power safe mode when lost DMX
Display accu self-charging battery backup
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik125W
Output (at 230V)12 units on a single power line
Fysieke eigenschappen
Koeling combination of heat pipe cooling system and low noise fan
Bevestiging any position with quick-lock omega brackets

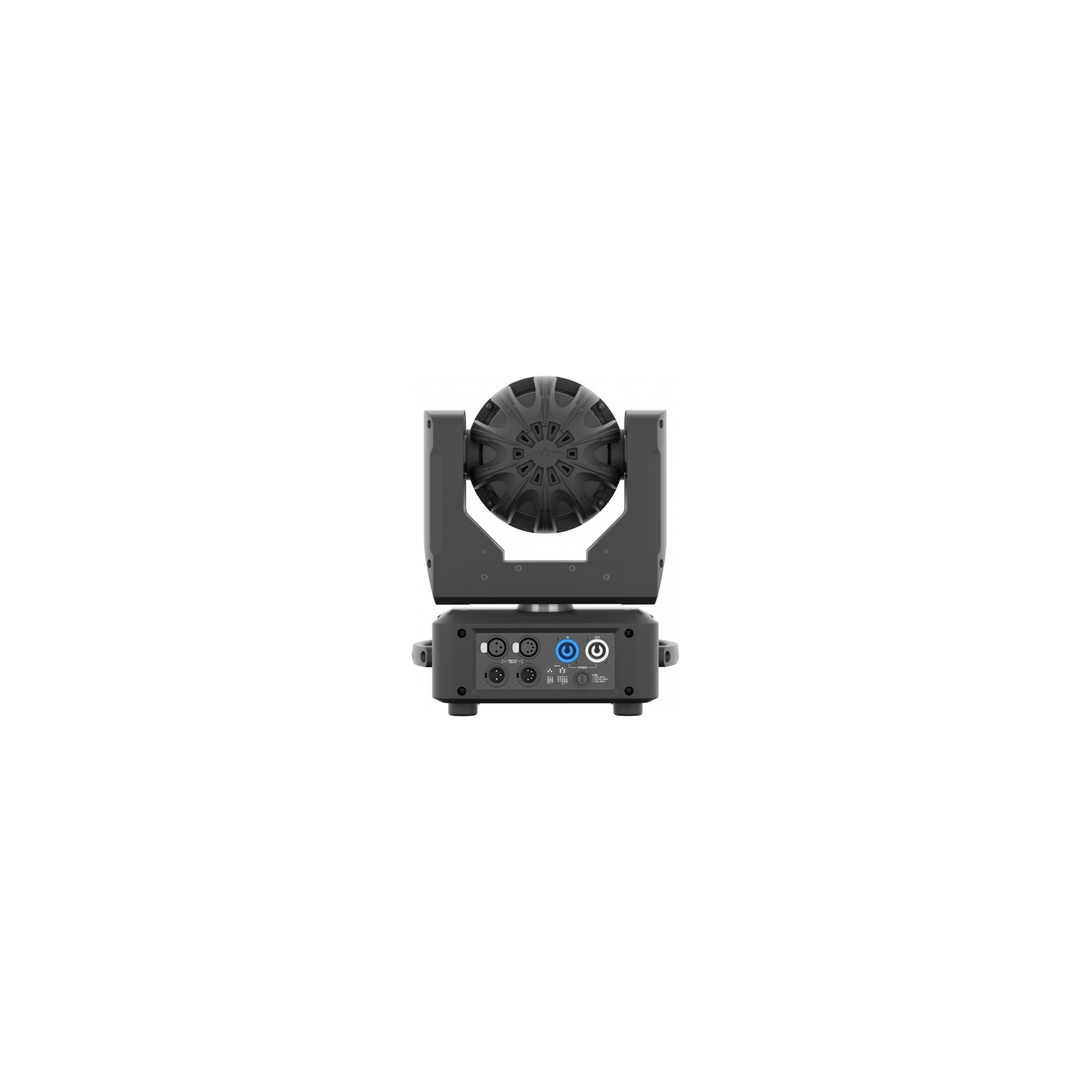

Signaal aansluiting Amphenol XLR 3p + 5p IN/OUT connectors
Stroomaansluiting Neutrik powerCON IN/OUT connectors
IP waarde20
Logistieke eigenschappen
Hoogte verpakking
20 cm
Breedte verpakking
27.8 cm
Diepte verpakking
37 cm
Gewicht verpakking
8 kg
