Lamp eigenschappen
KleursysteemRGB+WW - Full Color
Vermogen300W
Aansturing
Stand Alone2 rotatory knobs
Lichtbron
Lichtbron300W RGB + Warm White LED
CCTCCT control, + / - green correction, tungsten emulation
Luminous flux13'607 @5.600 K
Lux195lx @5 m 5.600 K
Levensverwachting lichtbron> 30.000 hrs (L70B10 @Ta 25° C / 77° F)
CRI93,2@5'600K
R997,3 @5'600K
TLCI92 @5'600K
TM30 Rf90,6 @5'600K
TM30 Rg104,9 @5'600K
Optiek
Extra optieken5° smooth filter on-board
Kleuren
KleurmengingRGB + Warm White
Wit macro's2.800 K - 10.000K
Kleurenwielbuilt-in white presets
Effecten
Control Resolution16-bit dimmer
Behuizing
Kleur behuizingZwart
Aansturing
ProtocollenDMX512, RDM, CRMX
DMX kanalen1/2/5/9/10/12/18channel
Master/Slavefor synchronised operation of more units linked in a chain

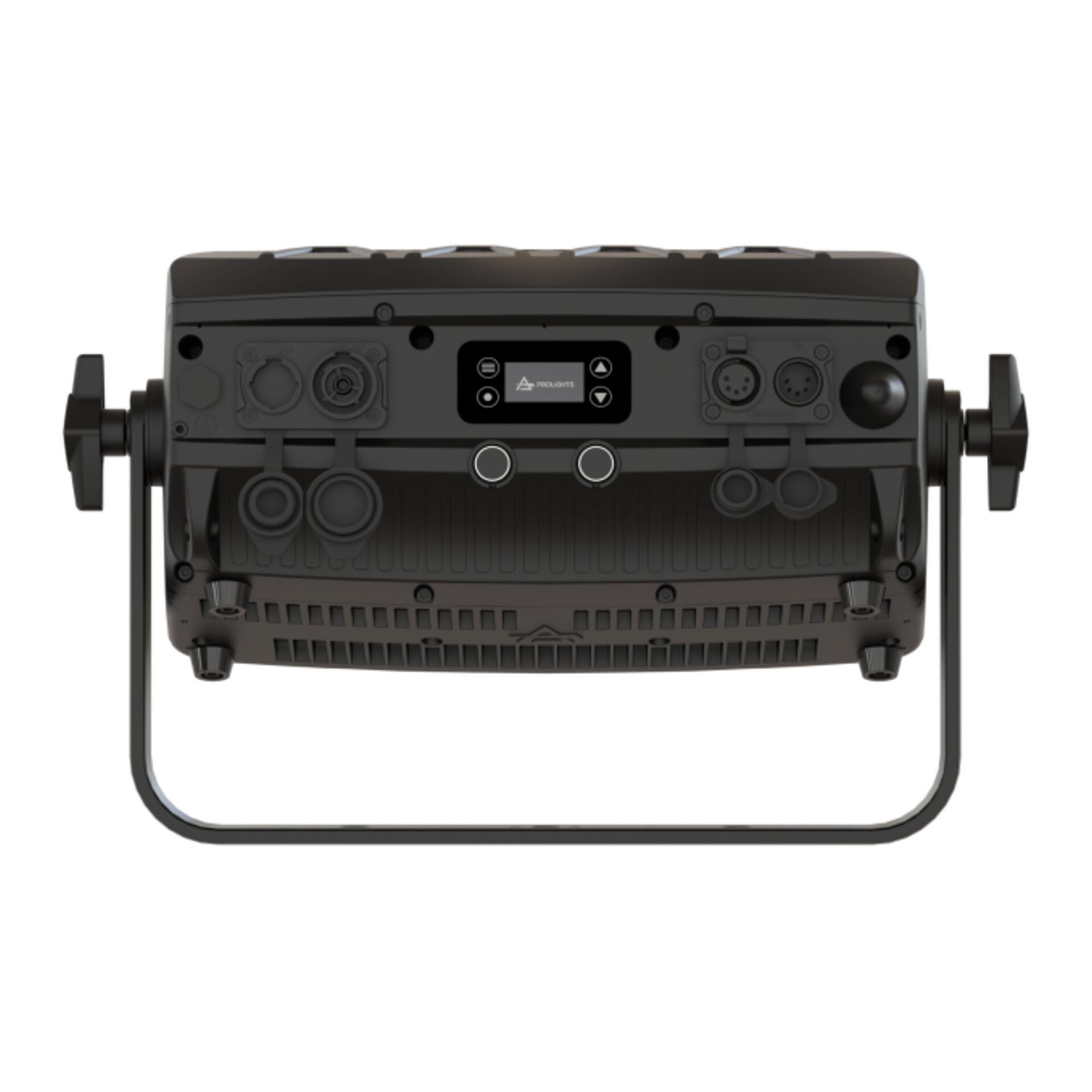

DisplayGraphic User Interface
Firmware upgradevia DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
RDMRDM for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-20° C / +45° C (-4° F / +113° F) Ta
Selecteerbare PWM frequentie600 ~ 40.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik310W
Output (at 230V)7 units on a single power line
Power factor> 0,97
Fysieke eigenschappen

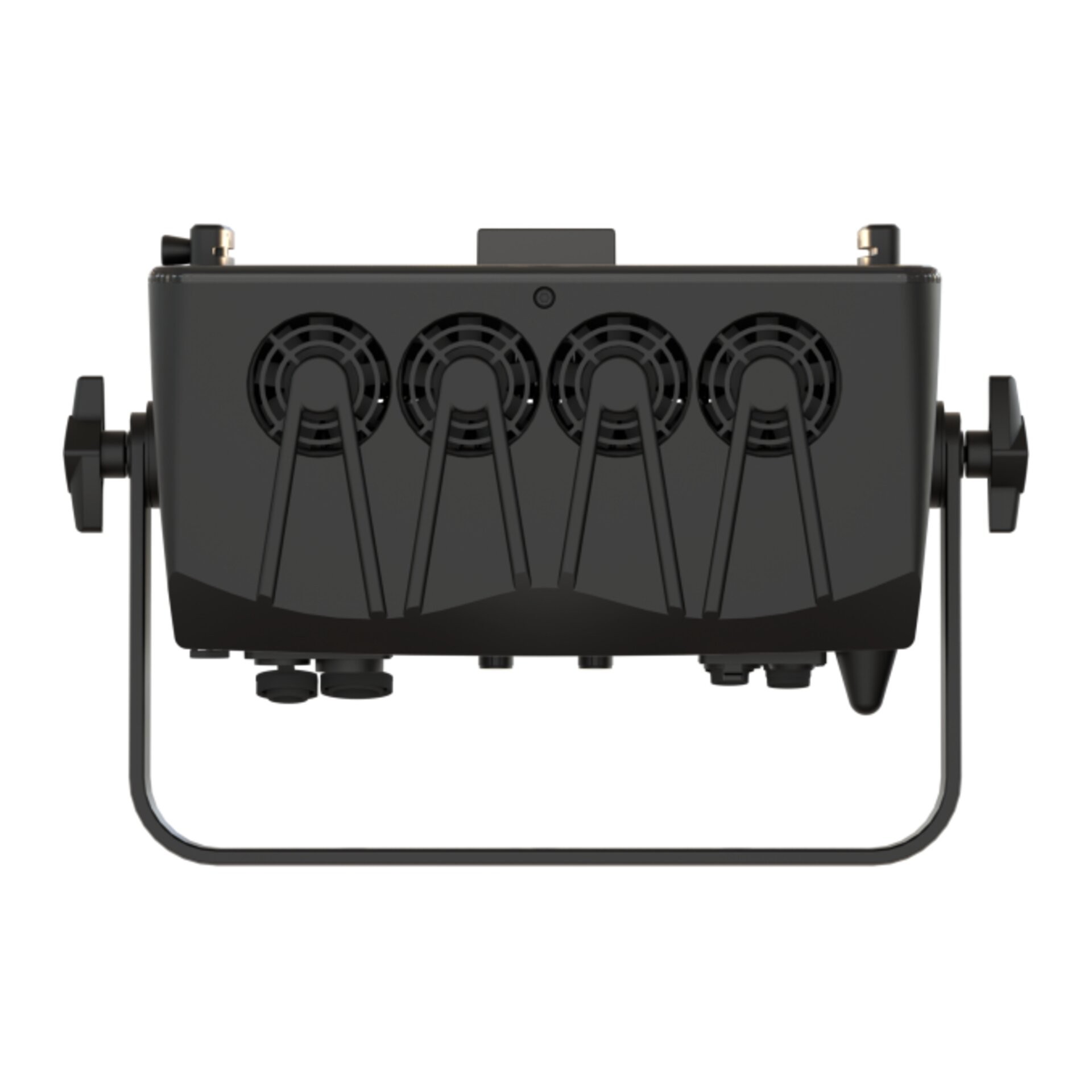

Koelingactive, silent operation
Bevestigingbracket for hanging and positioning
Signaal aansluitingIP65 Seetronic XLR 5p IN/OUT connectors
StroomaansluitingPowerCon TRUE1
IP waardeIP65
