Algemeen
Artikelnummer
21-00492
Merk
ProLights
Artikelnummer fabrikant
ECLEXPOFL150VWBK
Garantie
2 jaar
Aansturing
Stand Alone2 rotatory knobs
Lichtbron
Lichtbron150W Variable White LED
CCT CCT control through dedicated DMX channel
Luminous flux@2.700K 6'956 lm; @6.500K 9'733 lm; @full 8'598lm
Lux@2.700K 72 lx; @6.500K 99 lx; @full 91lx @5 m
Levensverwachting lichtbron > 20.000 h
CRI95,1 @2.700 K; 95,3 @6.500 K; 94.4 @full
R995 @2.700 K; 88.4 @6.500 K; 80,7 @full
TLCI97 @2.700 K; 96 @6.500 K; 98 @full
TM30 Rf> 94 @2.700 K; > 90 @6.500 K; > 92 @full
Kleuren
Kleurmenging tunable white
Wit macro's2.700 K - 6.500K
Kleurenwiel built-in white presets
Effecten
Control Resolution 16-bit dimmer
Body
Kleur behuizing RAL 9004
Behuizingsturdy die-cast magnesium body
Aansturing
Protocolen DMX512, RDM, CRMX
DMX kanalen1 / 2 / 3 / 5 / 11channel
Master/Slave for synchronised operation of more units linked in a chain
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik170W
Output (at 230V)7 units on a single power line
Power factor> 0,99
Fysieke eigenschappen
Koeling active, silent operation
Bevestiging bracket for hanging and positioning

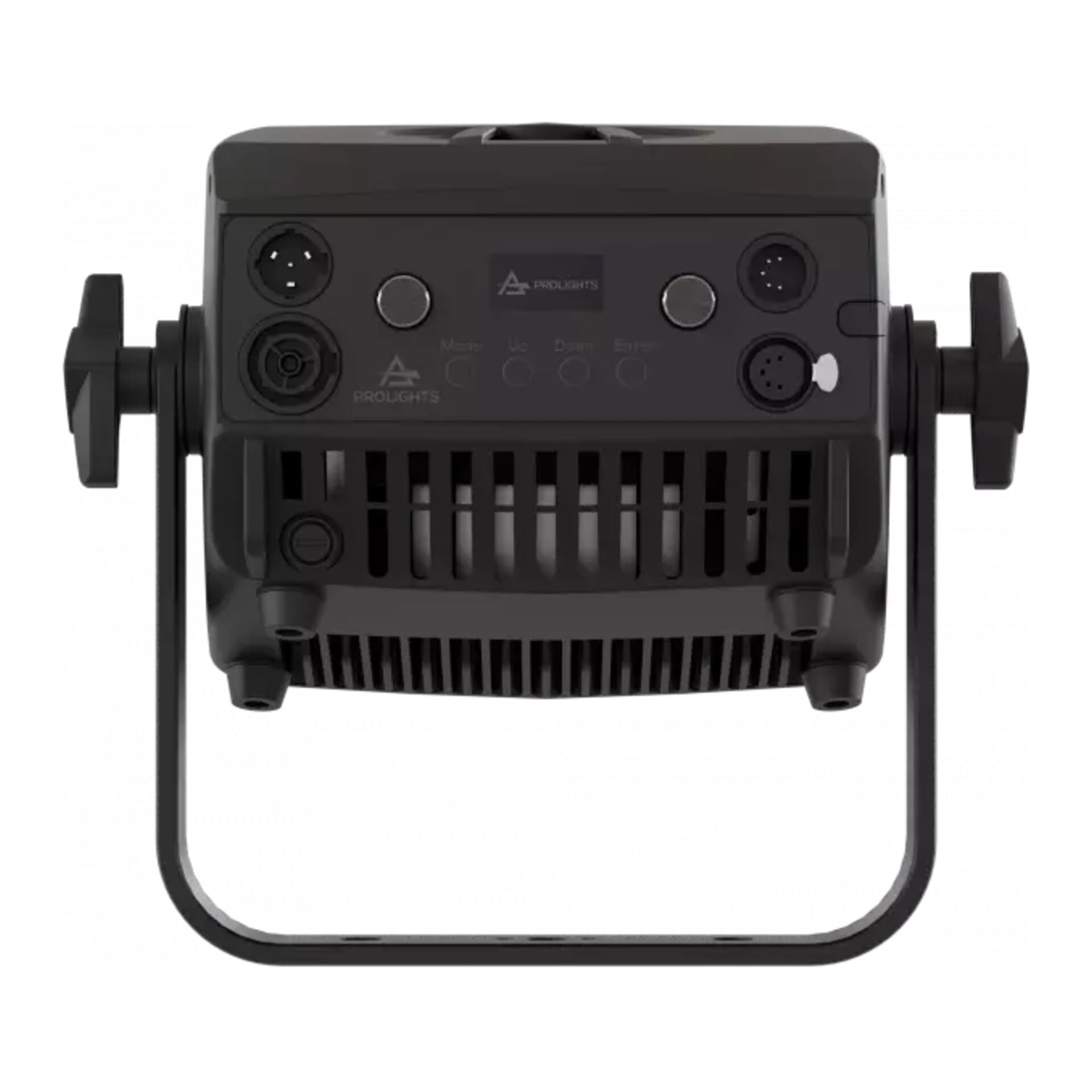

Signaal aansluiting Amphenol XLR 5p IN/OUT connectors
Stroomaansluiting Seetronic powerCON TRUE IP65 IN/OUT
IP waarde20
