Lichtbron
Lichtbron170W RGB + Warm White
CCT CCT control, + / - green correction, tungsten emulation

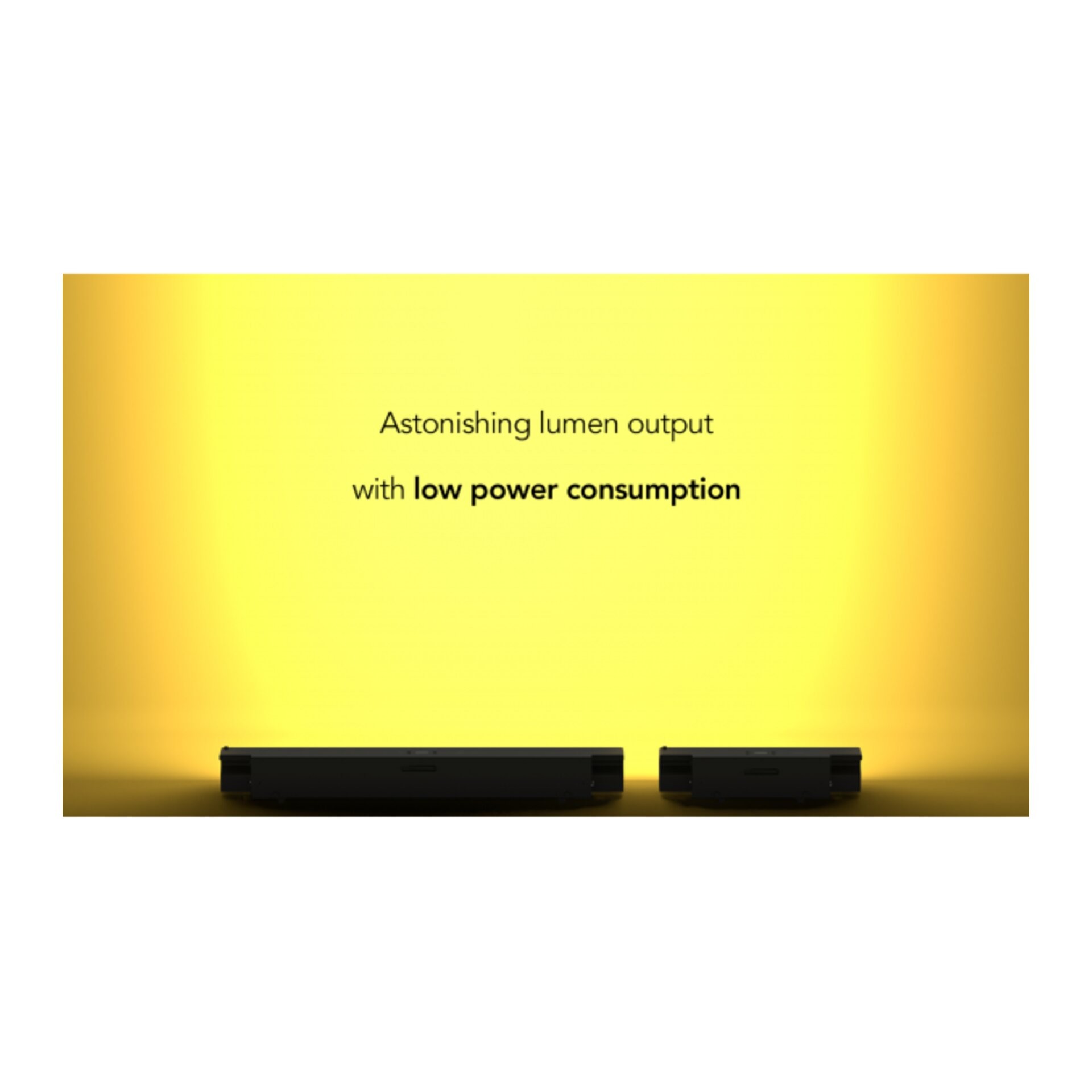

Luminous flux(with 80°x40° filter on board) 13'896lm @full

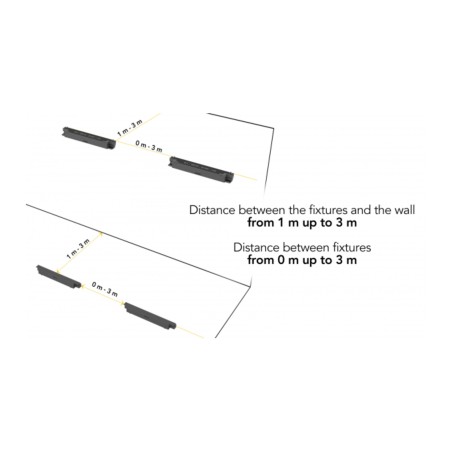

Lux@1 m to wall and 1,5 m height @ full (with standard filter) 625 lx - (with 40° filter) 1'530 lx - (with 10°x60° filter) 1'590 lx - (with 30°x60° filter) 1'690lx
Levensverwachting lichtbron > 50.000 h
CRI93 @3.200 K; 91 @5.600 K
R991 @3.200 K; 95 @5.600 K
TLCI87 @5.600 K
TM30 Rf88,8 @5.600 K
TM30 Rg107,4 @5.600 K
Optiek
Extra optieken see available accessories
Kleuren
Kleurmenging RGB + Warm White
Wit macro's2.800 K - 6.500K
Kleurenwiel virtual colour wheel with macros
Effecten
Control Resolution 16bit dimmer, colours
Body
Kleur behuizing black
Behuizing sturdy die-cast aluminium body
Aansturing
Protocolen DMX512, RDM, Art-Net, sACN, W-DMX
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
W-DMX included, wireless solution receiver
RDM RDM ready for remote monitoring and settings
Electronics
Dimmer curves selectable dimming modes available
Strobe / shutter1-30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free frequency with adjustable PWM
Display accu self-charging battery backup
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik180W
Power factor>0,94
Fysieke eigenschappen
Koeling heat sink without fan

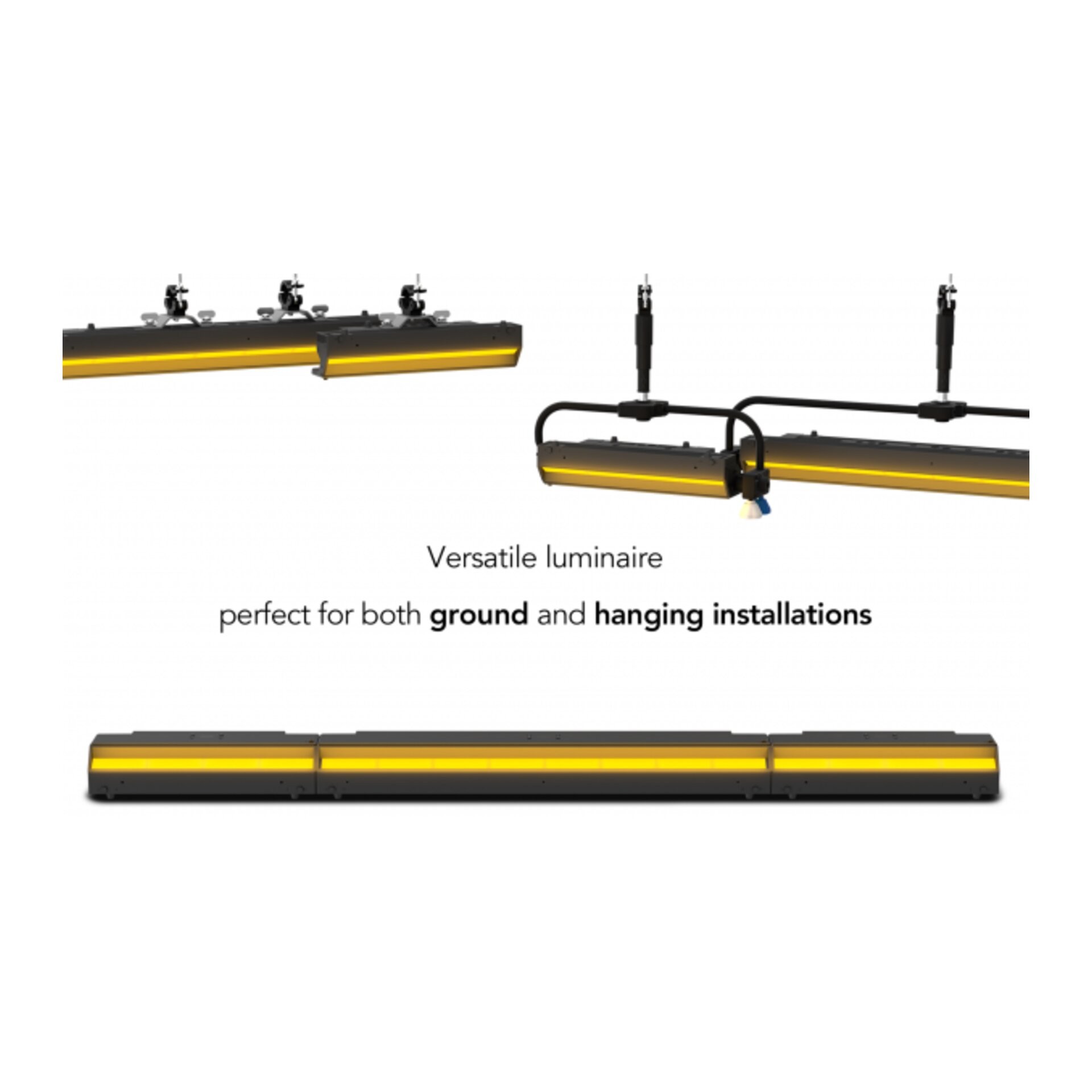

Bevestiging any position with quick-lock omega brackets

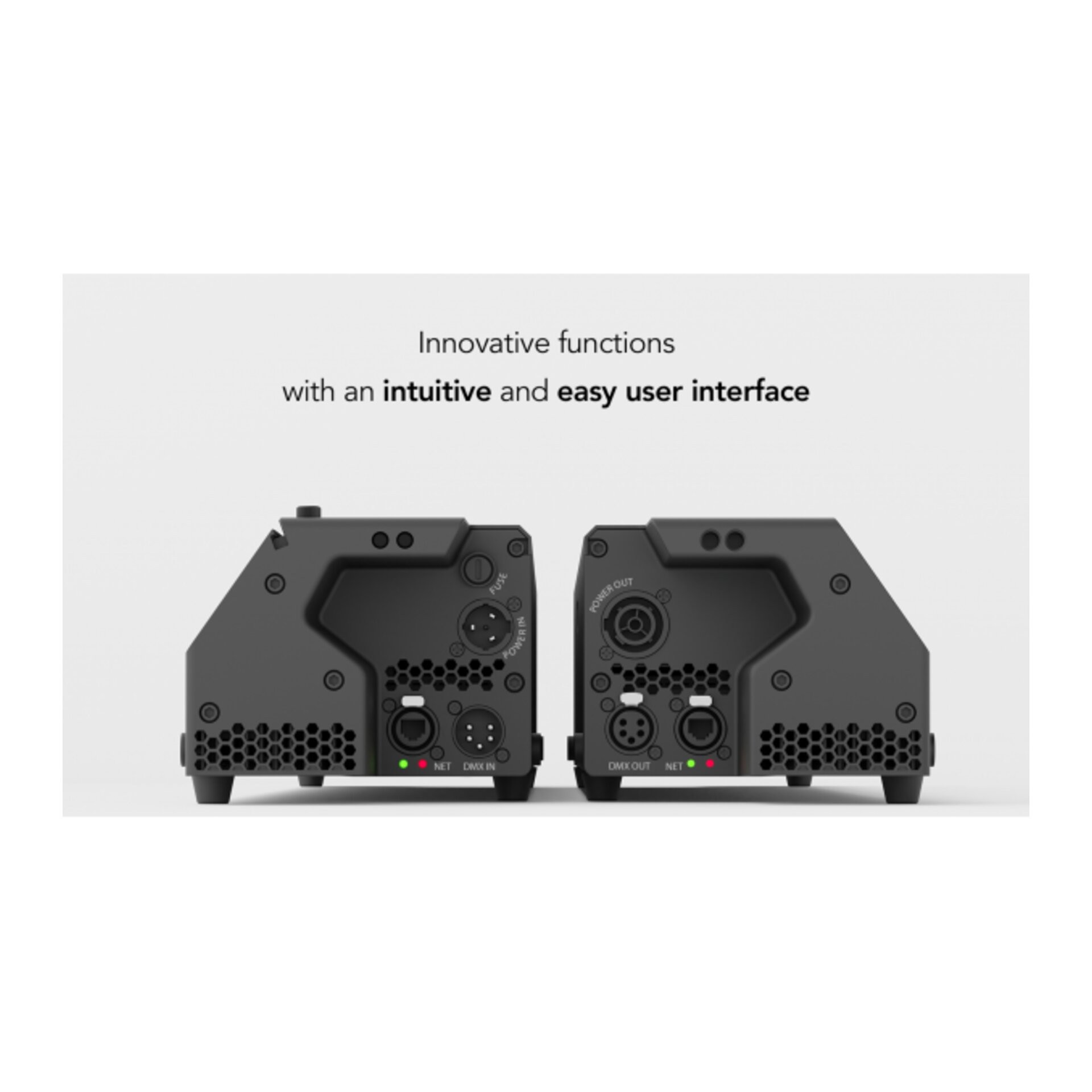

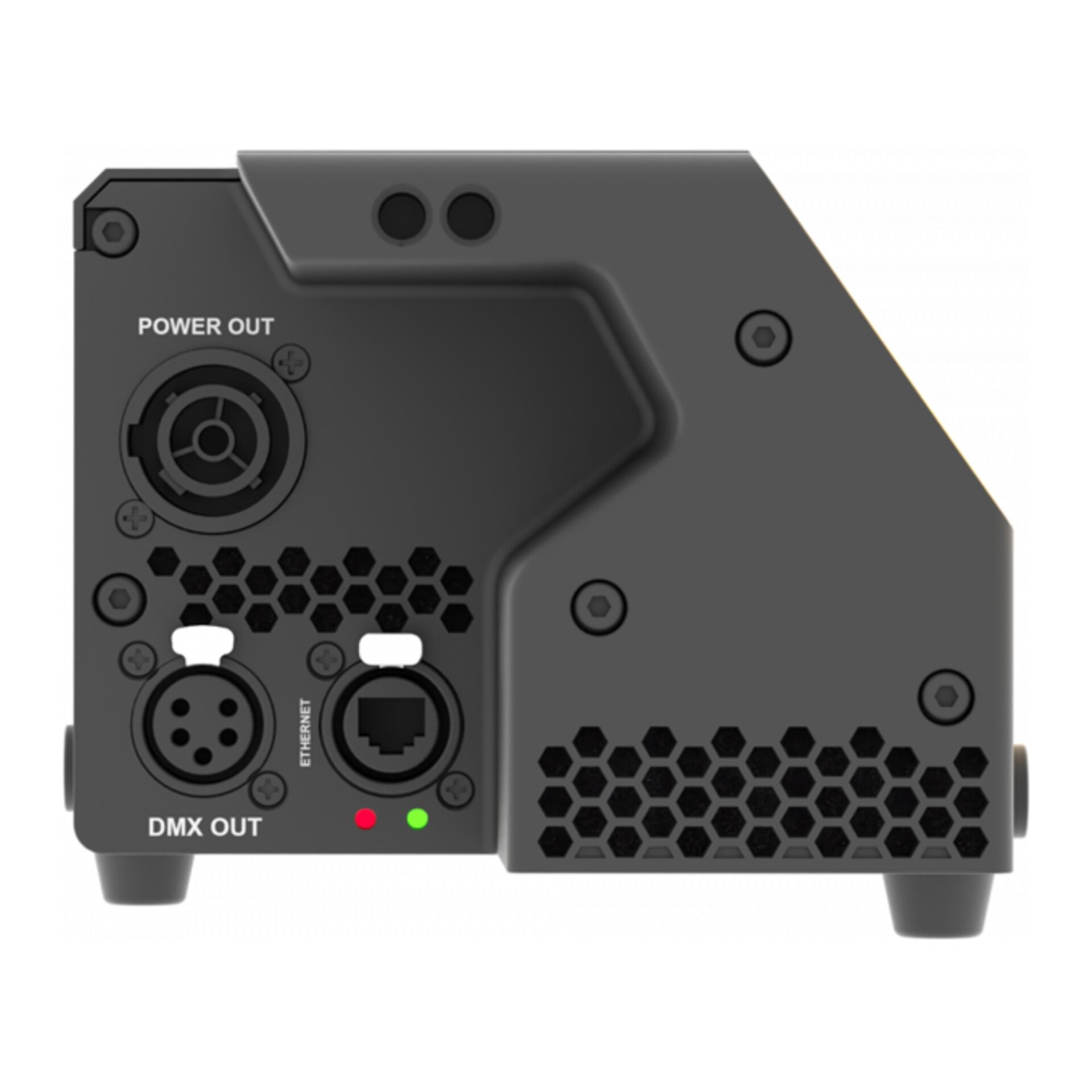

Signaal aansluiting Amphenol XLR 5p IN/OUT connectors
Stroomaansluiting Seetronic powerCON waterproof IN/OUT connectors
IP waardeIP20
