Lamp eigenschappen
KleursysteemRGB+WW - Full Color
Vermogen330W
Lichtbron
Lichtbron330W RGB + Warm White
CCTCCT control, + / - green correction, tungsten emulation
Luminous flux(with 80°x40° filter on board) 27'342lm @full
Lux@1 m to wall and 1,5 m height @full (with standard filter 80°x40°) 1'240 lx - (with 4
Levensverwachting lichtbron> 50.000 h
CRI93 @3.200 K; 92,6 @5.600 K
R988 @3.200 K; 93,7 @5.600 K
TLCI91 @5.600 K
TM30 Rf89,8 @5.600 K
TM30 Rg106 @5.600 K
Optiek
Extra optiekensee available accessories
Min. Zoombereik40
Kleuren
KleurmengingRGB + Warm White
Wit macro's2.800 K - 6.500K
Kleurenwielvirtual colour wheel with macros
Effecten
Control Resolution16bit dimmer, colours
Behuizing
Kleur behuizingZwart, black
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512, RDM, Art-Net, sACN, W-DMX
DisplayGraphic User Interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
W-DMXincluded, wireless solution receiver
RDMRDM ready for remote monitoring and settings
Electronics
Dimmer curvesselectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free frequency with adjustable PWM
Display accuself-charging battery backup
Selecteerbare PWM frequentie600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik400W
Power factor>0,94
Fysieke eigenschappen
Koelingheat sink without fan

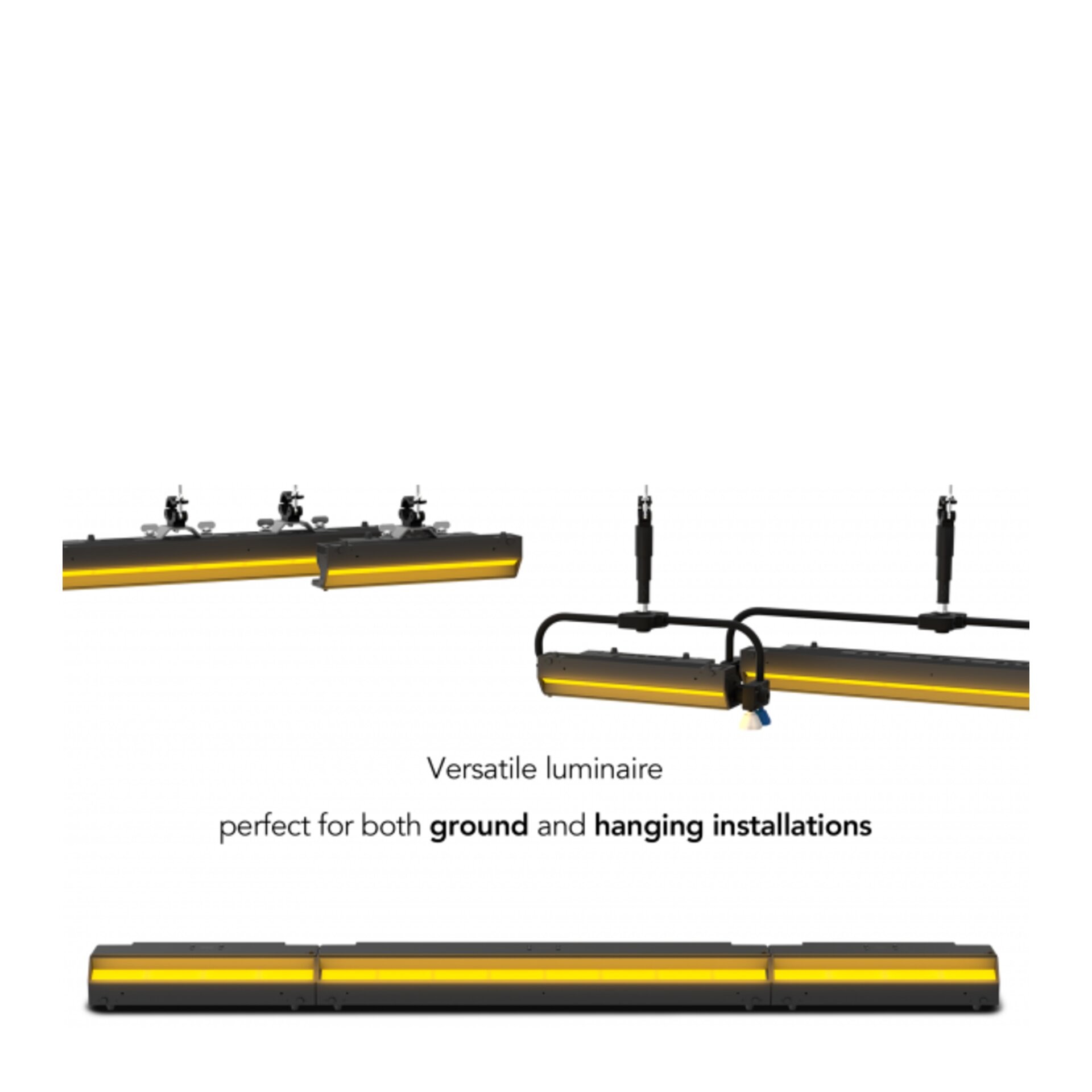

Bevestigingany position with quick-lock omega brackets

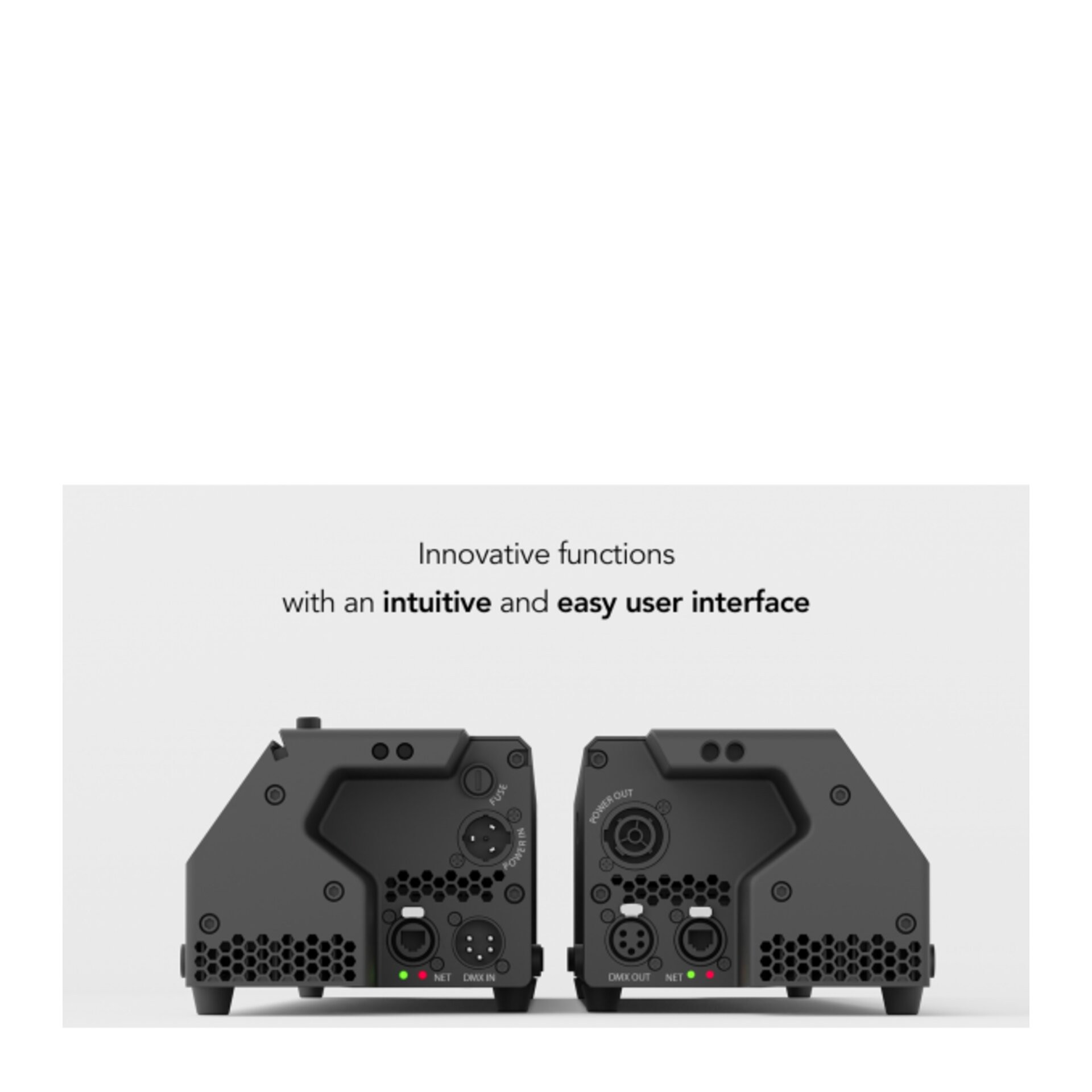

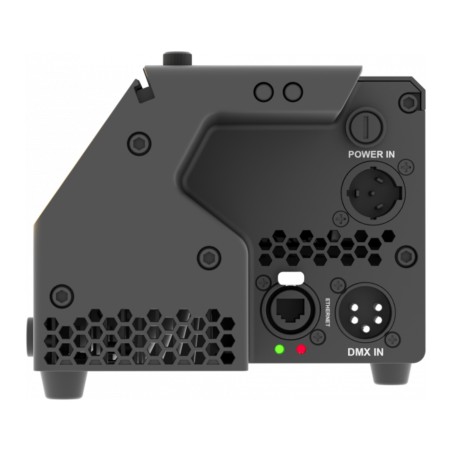

Signaal aansluitingAmphenol XLR 5p IN/OUT connectors
StroomaansluitingPowerCON TRUE1, Seetronic powerCON waterproof IN/OUT connectors
IP waardeIP20, IP20
Logistieke eigenschappen
Hoogte verpakking
25 cm
Breedte verpakking
110 cm
Diepte verpakking
21.5 cm
Gewicht verpakking
12.1 kg
