Algemeen
Artikelnummer
21-00437
Merk
ProLights
Artikelnummer fabrikant
SMARTBATPLUSG2
Garantie
2 jaar
Lichtbron

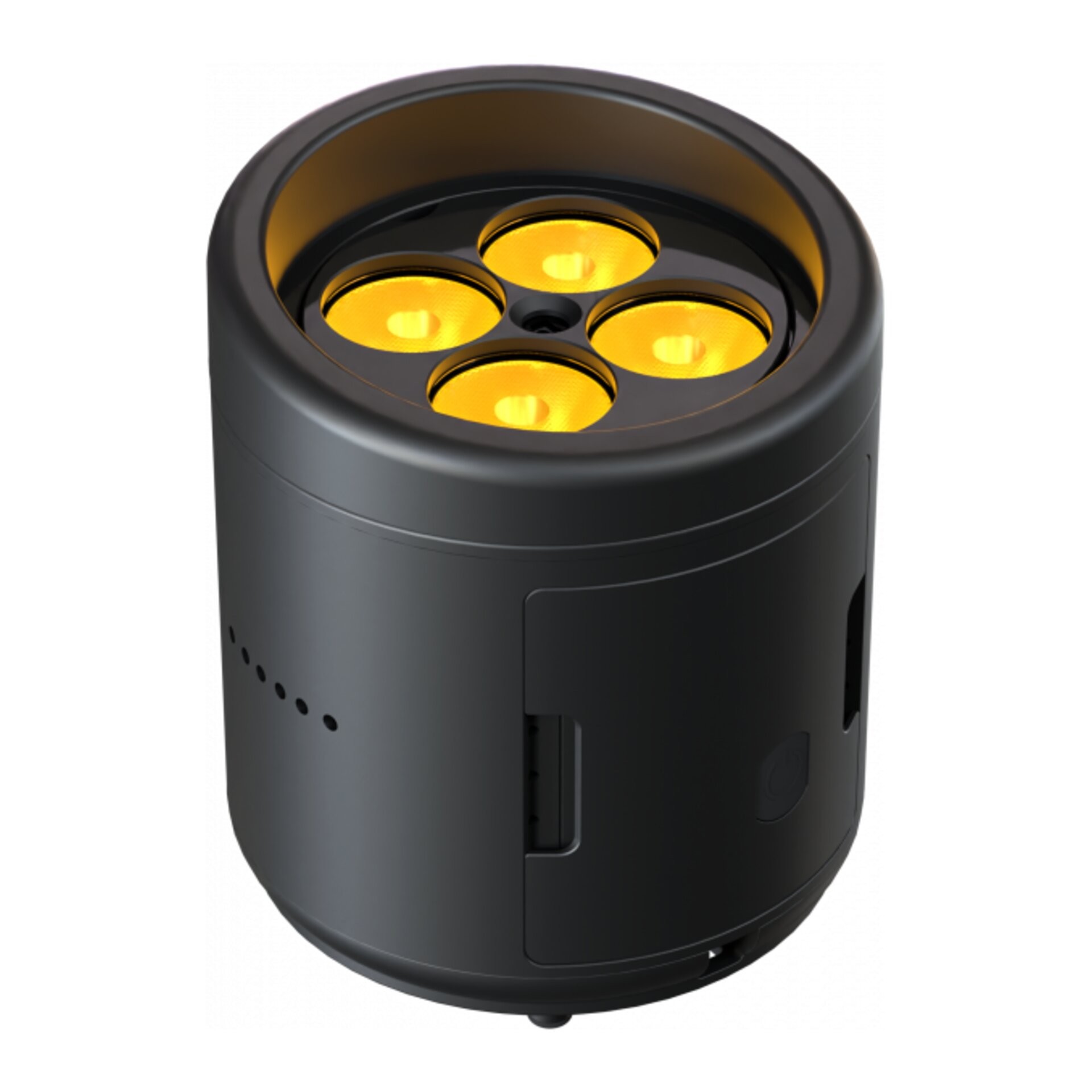

Lichtbron4x20W RGB + Warm White LED
CCTCCT control through dedicated DMX channel
Luminous flux3'102lm @full
Lux1'723lx @5 m without filter
Levensverwachting lichtbron> 50.000 h
CRI94 @3.200 K; 92 @5.600 K
R996 @3.200 K; 96 @5.600 K
TLCI92 @5.600 K
TM30 Rf93 @3.200 K; 91 @5.600 K
TM30 Rg105 @3.200 K; 106 @5.600 K
Optiek

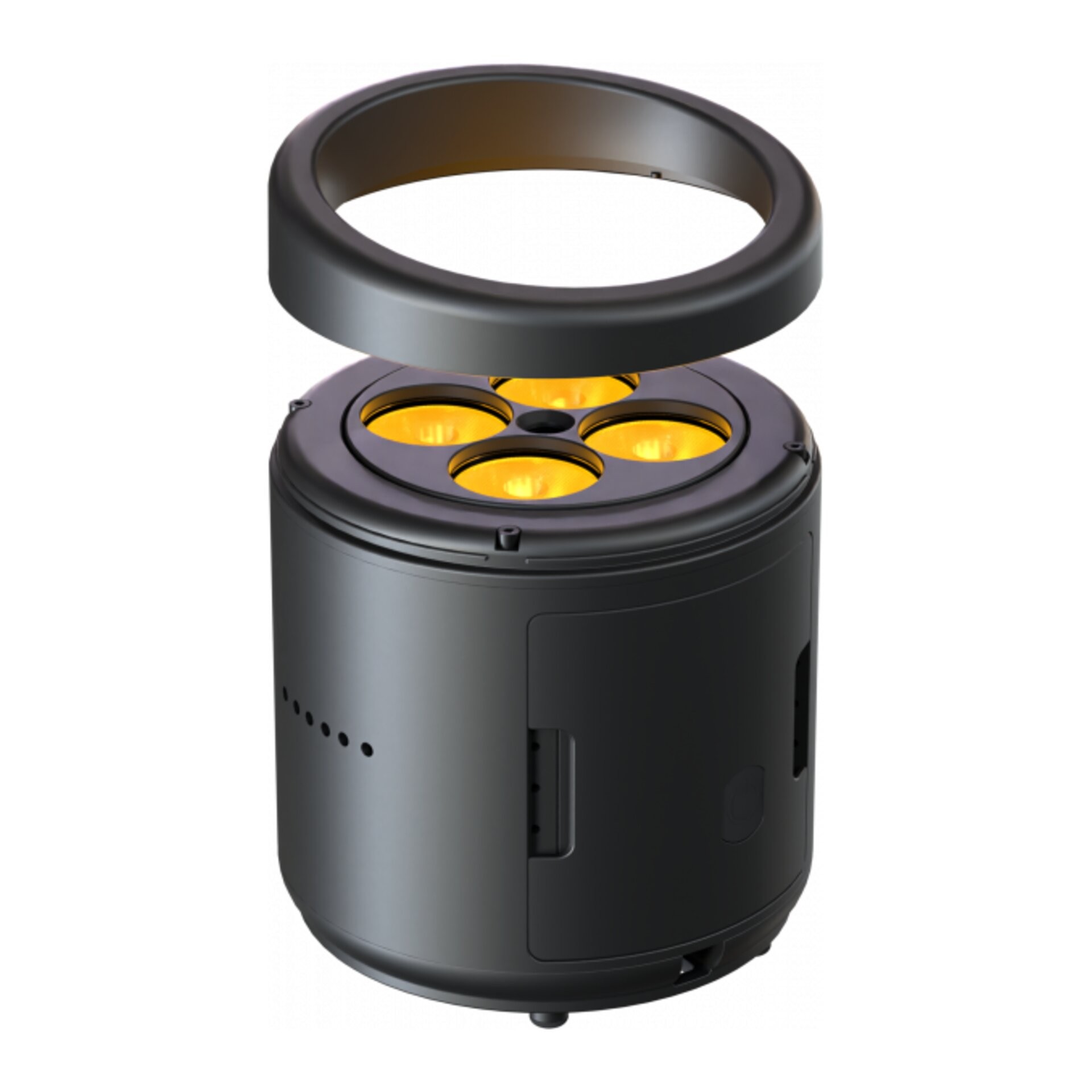

Extra optiekenfilters to achieve 20°, 40°, 60°, 10°x60°
Kleuren
KleurmengingRGBWW
Wit macro's2'800K - 10'000K
Kleurenwielvirtual colour wheel with macros
Effecten
Macrosbuilt-in white presets
Control Resolution16-bit dimmer, colours
Behuizing
Kleur behuizingRAL 9004
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenCRMX+W-DMX, DMX512, RDM
Master/Slavefor synchronised operation of more units linked in a chain

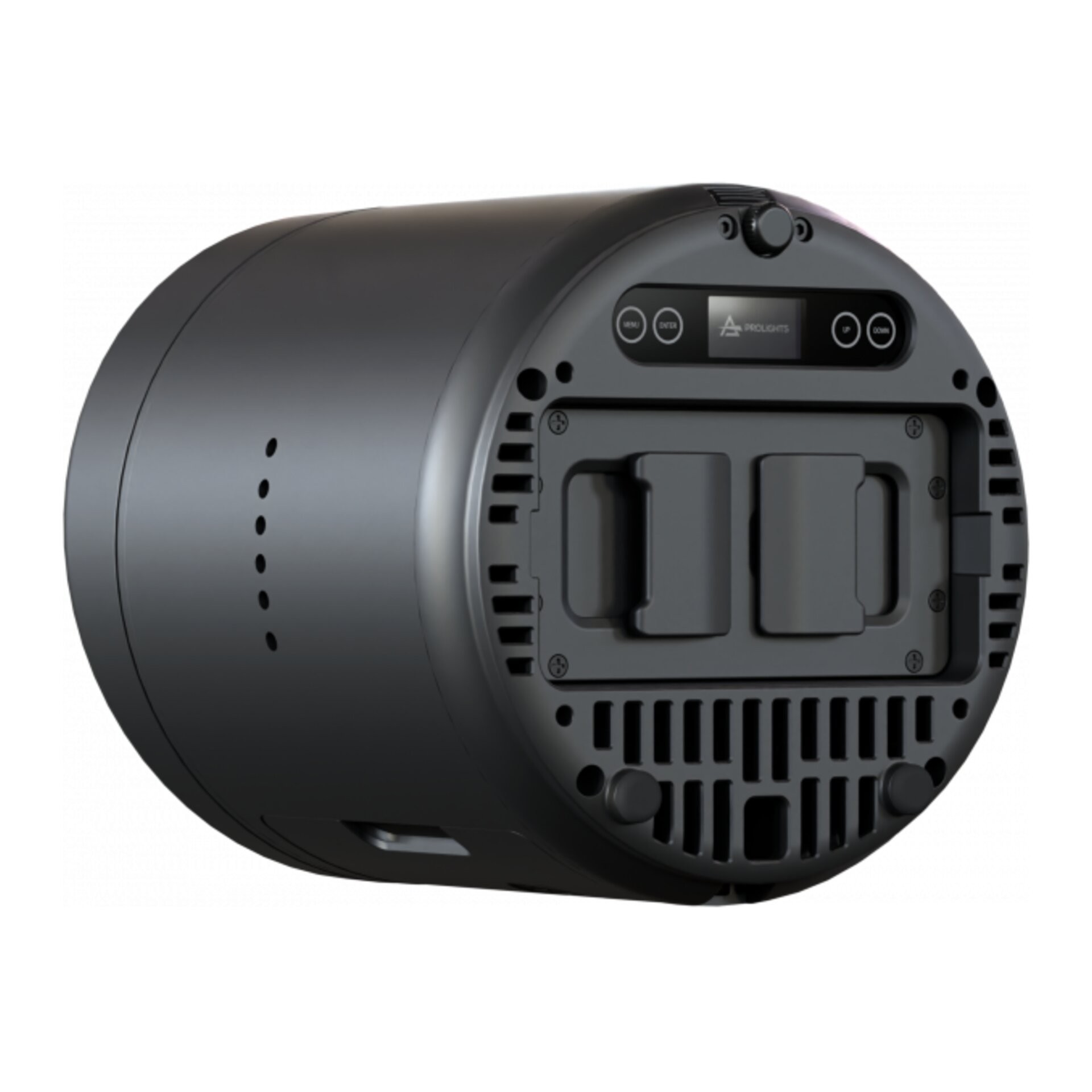

DisplayGraphic User Interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
RDMRDM for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur0° ~ +45°
LED Controlflicker free operation
Selecteerbare PWM frequentie600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik(with mains) 80W
Power factor>0,98

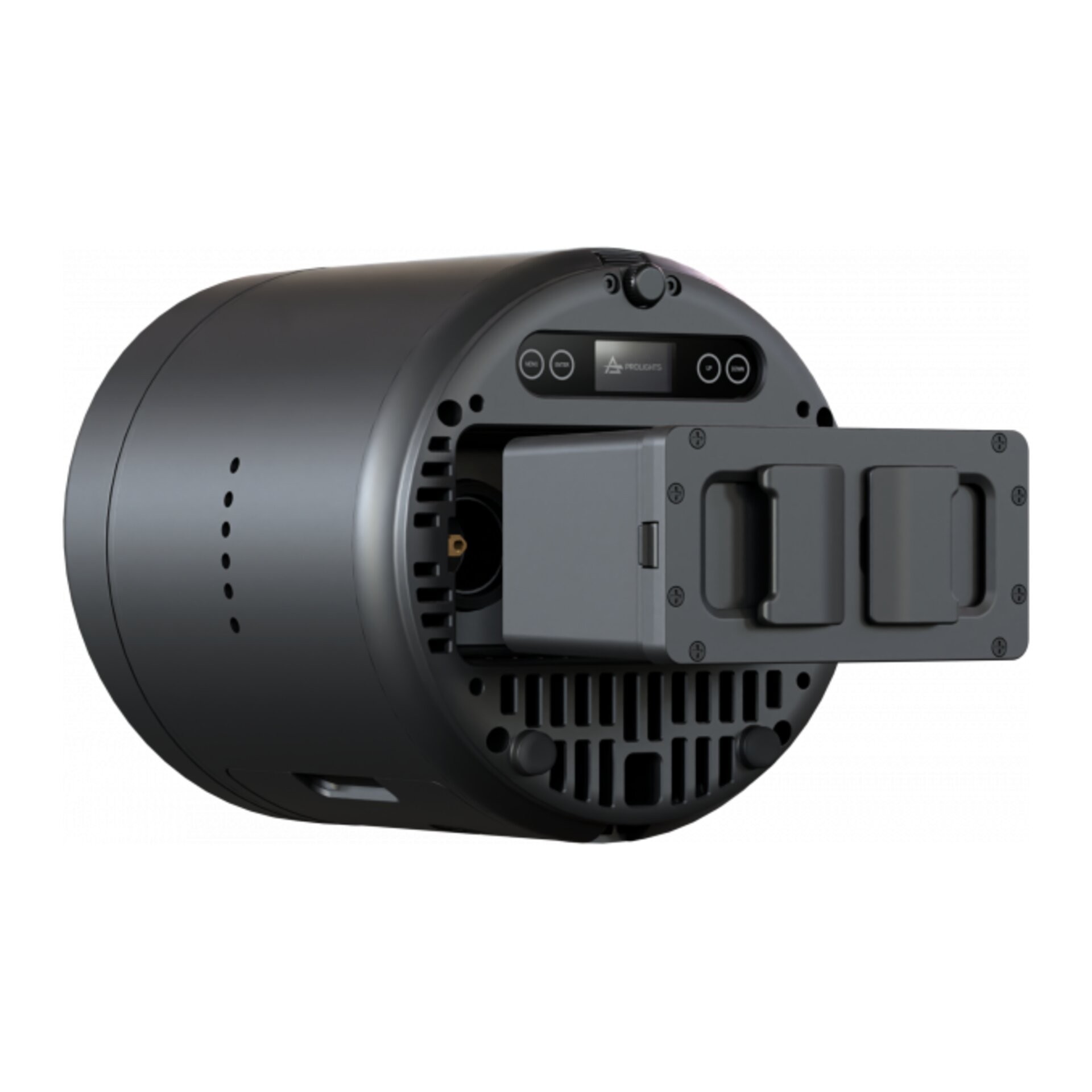

Batterijremovible 16,8V lithium
Fysieke eigenschappen
Koelingpassive cooling and fan-free
Bevestigingbracket for hanging and positioning

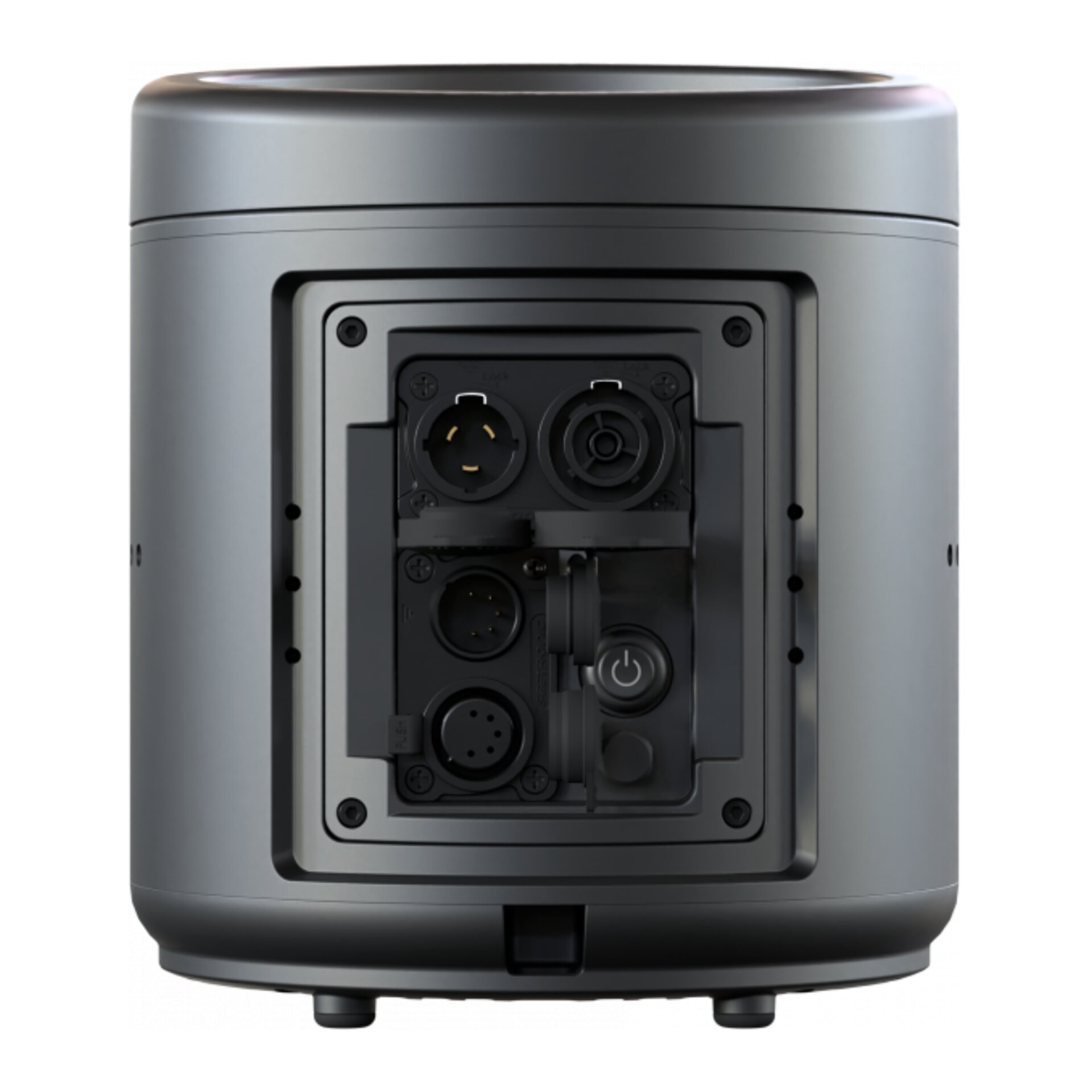

Signaal aansluitingIP65 Amphenol XLR 5p IN/OUT connectors
StroomaansluitingIP65 Neutrik powerCON TRUE1 IN/OUT connectors
Oplaad connectieBattery Pack fast-charge in Case
IP waarde65 for temporary outdoor application, not for fixed installations
Logistieke eigenschappen
Hoogte verpakking
30 cm
Breedte verpakking
35 cm
Diepte verpakking
27.5 cm
Gewicht verpakking
7.5 kg
