Lichtbron

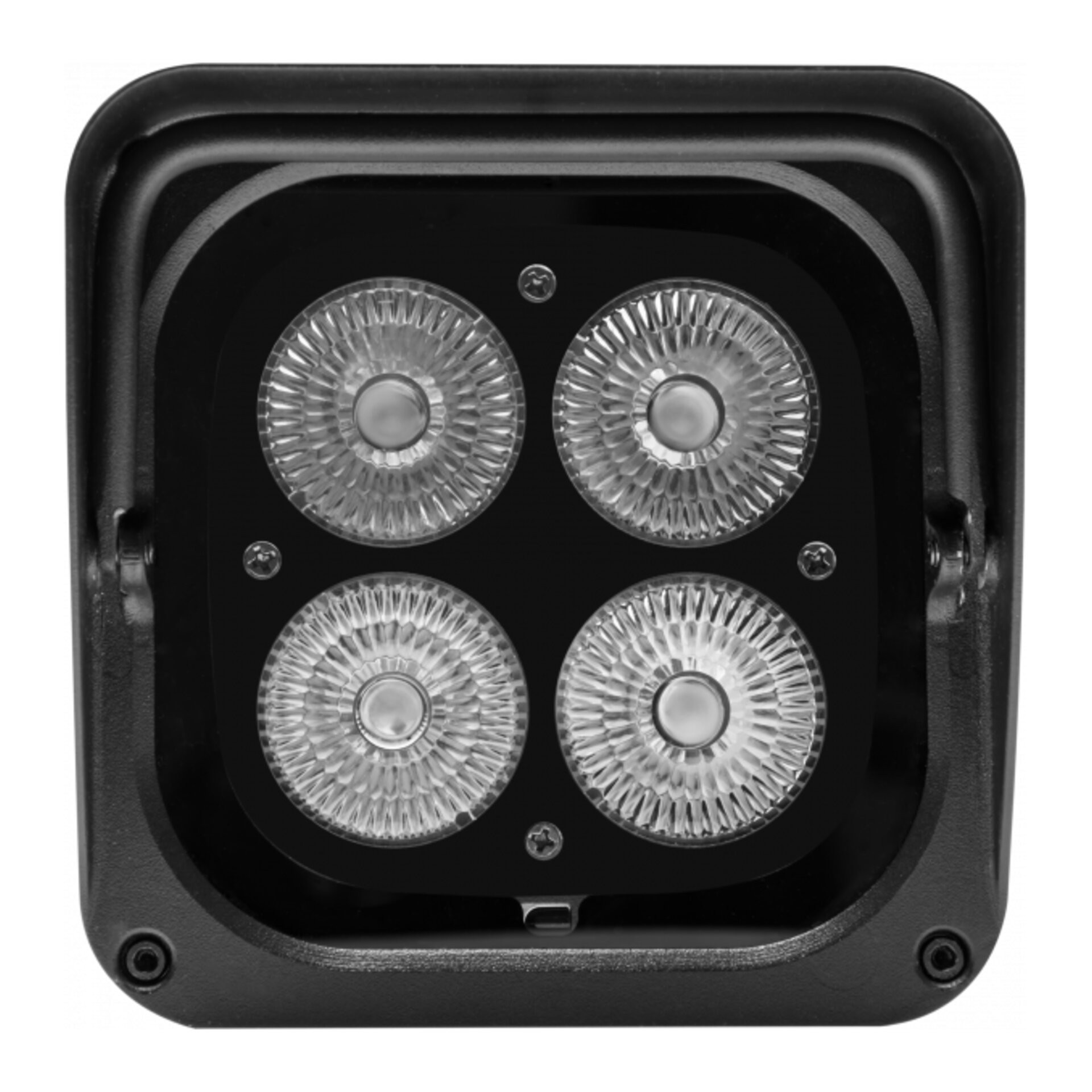

Lichtbron4x8W RGBW LEDs
Luminous flux1'127lm
Lux833lx @3 m full
Levensverwachting lichtbron > 50.000 h
Optiek
Lens diameter42mm
Extra optieken25° and 45° optional
Kleuren
Manual colour mode manual adjustment of colour
Kleurmenging RGBW / FC
Wit macro's3.200 K ~ 10.000K
Kleurenwiel virtual colour wheel with macros
Behuizing

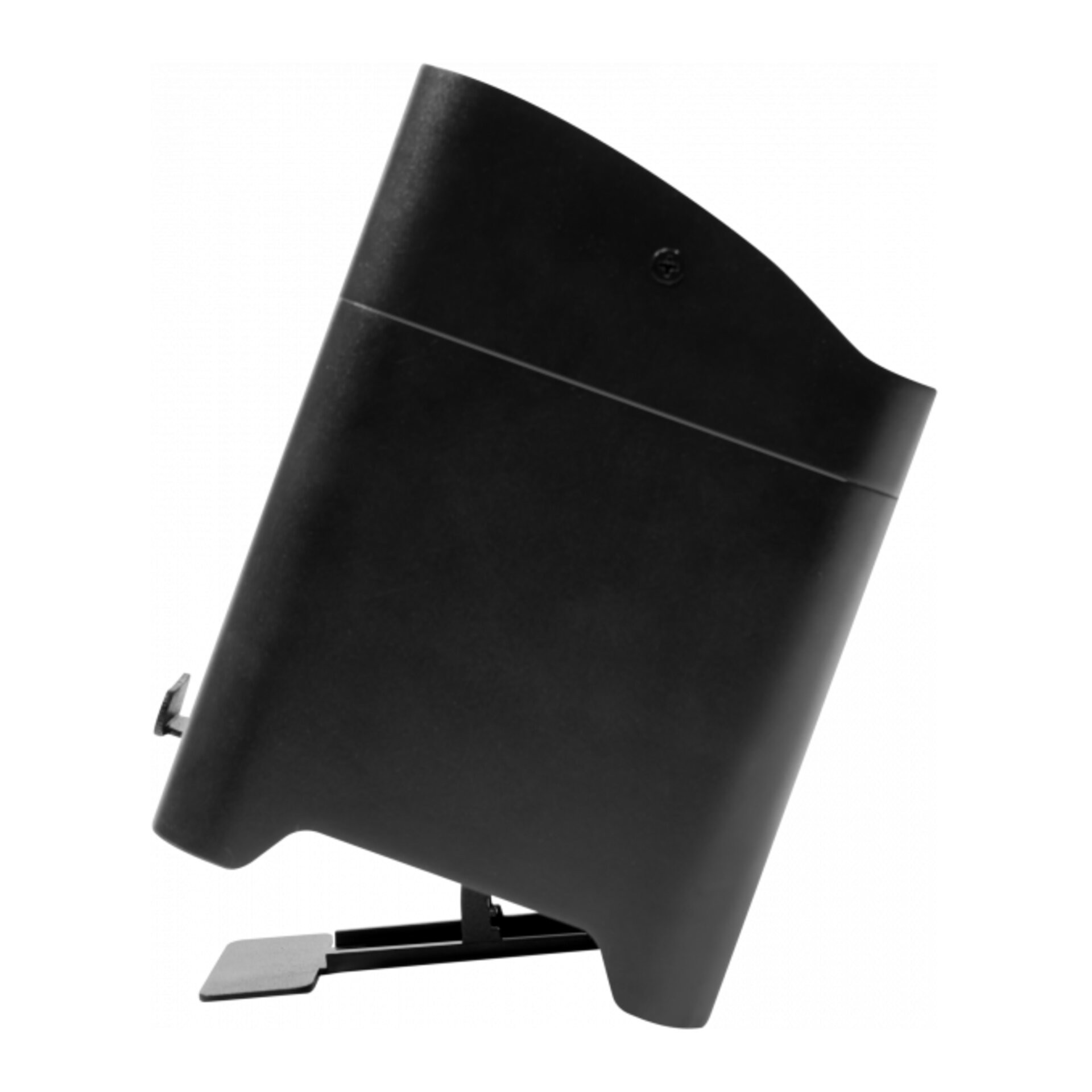

Tilt angle° adjustable foot support for tilt regulation (up to 20°)
Kleur behuizing black, white finishing available
Materiaal sturdy die-cast aluminium body
Aansturing
Protocollen DMX512
DMX kanalen4 / 6 / 10channel
Master/Slave for synchronised operation of more units linked in a chain

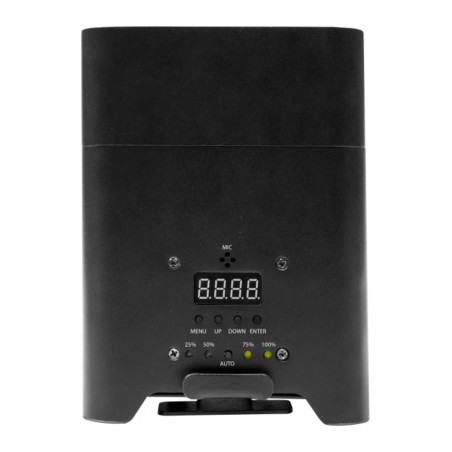

Display LED display user interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
W-DMX integrated, proprietary protocol compatible with WIFIBOX, WDBOX
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 25 Hz, electronic
Bedrijfstemperatuur 0° ~ +35°
LED Control flicker free operation
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik30W
Batterij24V lithium
Fysieke eigenschappen
Koeling passive cooling and fan-free
Bevestiging M12 threaded insert for easy clamp installation

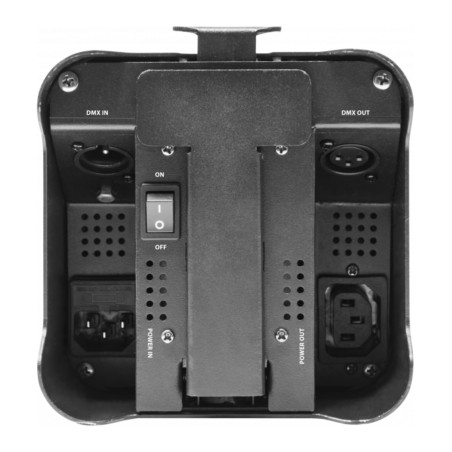

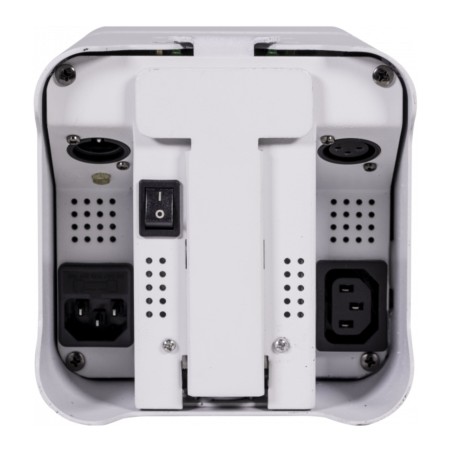

Signaal aansluiting XLR 3p IN/OUT connectors
Stroomaansluiting IEC IN/OUT connectors
IP waarde33
Oplaad connectie power cable
Logistieke eigenschappen
Gewicht verpakking
3.5 kg
