Lamp eigenschappen
KleursysteemRGB+WW - Full Color
Vermogen1200W
Lichtbron
CCTCCT control range from 2.800K to 10.000K, + / - green correction, tungsten emulation
Luminous fluxFull Power Wash - Combined: 40'507 lm @full
LuxFull Power Wash - Combined: 621lx @5 m full
Levensverwachting lichtbron> 20.000 h
Kleuren
KleurmengingRGB+WW + White LEDs
Wit macro's2.800-10.000K
Effecten
FX generatoradjustable foreground/background colour, index, speed, direction
MacrosGels library on-board
Control Resolution16-bit dimmer, colours
EffectenLed ring
Behuizing
Kleur behuizingZwart
Materiaalweatherproof IP65 construction with die-cast magnesium alloy
Aansturing
ProtocollenDMX512, RDM, ArtNet, sACN, CRMX
DMX kanalen7 / 13 / 21 / 36 / 32 / 42 / 47 / 60channel
DisplayGraphic User Interface
Firmware upgradeyes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
RDMRDM for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-20° C / +45° C (-4° F / +113° F)
LED Controlflicker free operation
Display accuself-charging battery backup
Selecteerbare PWM frequentie600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruikstrobe: 1.200 W (peak) - wash: 400W
Output (at 230V)2 units on a single power line
Power factor> 0,94
Fysieke eigenschappen
Koelingactive, silent operation

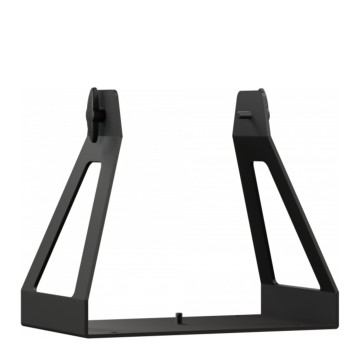

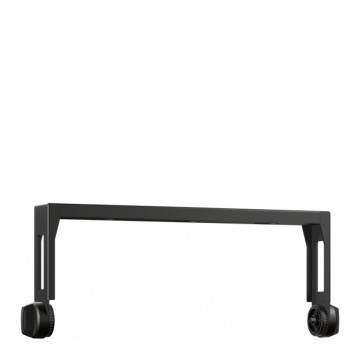

Bevestiginghanging bracket for floor positioning with "Quick-Lock" system
Signaal aansluitingIP65 Seetronic XLR 5p IN/OUT connectors
StroomaansluitingPowerCon TRUE1
IP waardeIP65
Gewicht12 kg
Overige eigenschappen
Lichtbron(Plate 16 px) 1.024 x 1,2W RGB+WW LEDs + (Beam 12 px) 60 x 12W White LEDs
Singlecolor LED
Logistieke eigenschappen
Hoogte verpakking
33 cm
Breedte verpakking
60 cm
Diepte verpakking
25 cm
Gewicht verpakking
13.2 kg
