Lichtbron

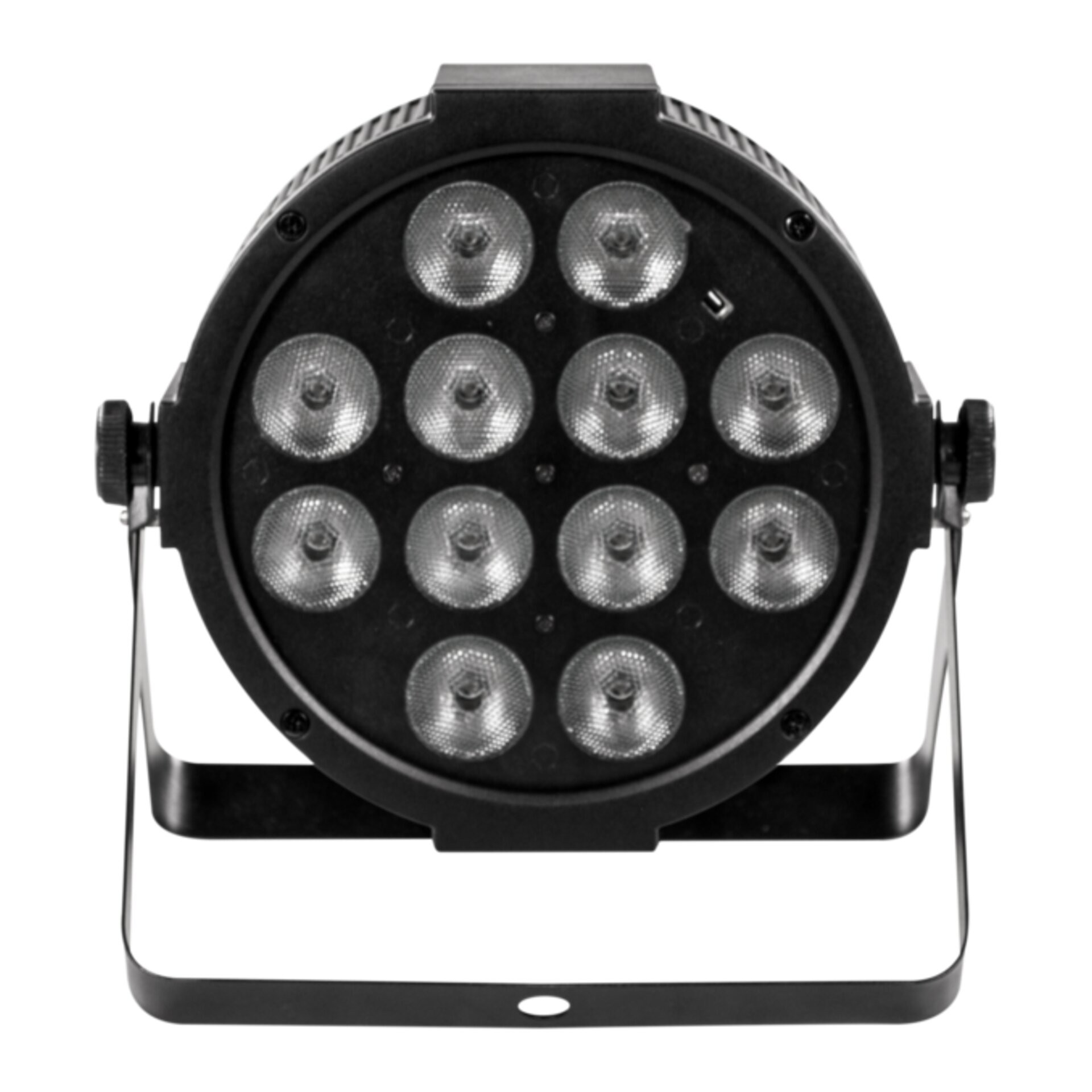

Lichtbron12x4W RGBW LEDs
Luminous flux1'685lm
Lux1'461lx @3 m full
Levensverwachting lichtbron> 50.000 h
Optiek
Lens diameter38mm
Extra optieken25° (inc) - 45° (op)
Kleuren
Manual colour modemanual adjustment of colour
KleurmengingRGBW / FC
Kleurenwielvirtual colour wheel with macros
Behuizing
Kleur behuizingblack
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512
DMX kanalen4 / 9channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayLED display user interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
W-DMXoptional, proprietary protocol compatible with WIFIBOX, WDBOX
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 ~ 28 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free operation
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik47W
Output (at 230V)27 units on a single power line
Fysieke eigenschappen
Koelingpassive cooling and fan-free
Bevestigingdouble hanging bracket suitable for safe hanging and for floor positioning

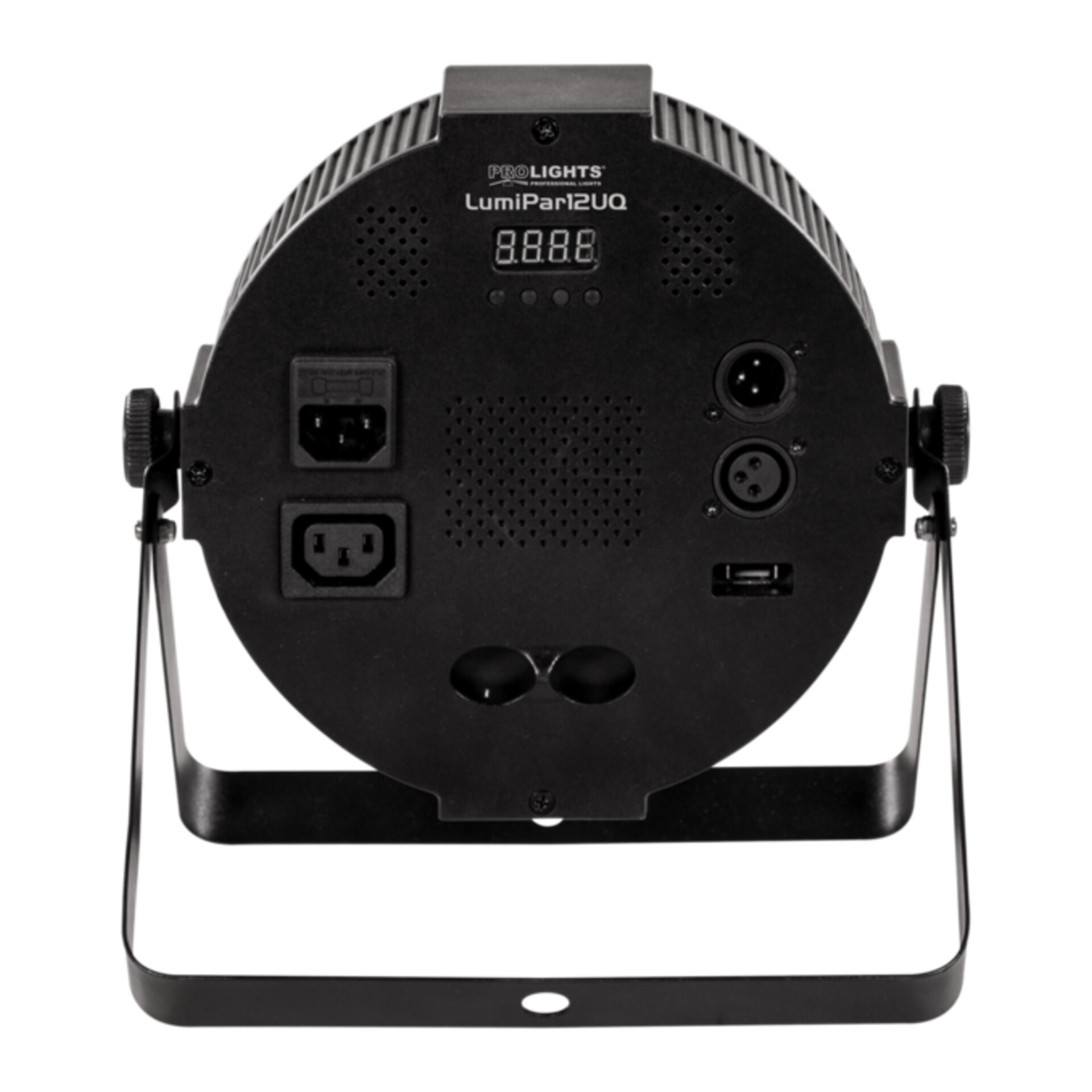

Signaal aansluitingXLR 3p IN/OUT connectors
StroomaansluitingIEC IN/OUT connectors
IP waarde20
Logistieke eigenschappen
Hoogte verpakking
20.9 cm
Breedte verpakking
24.6 cm
Diepte verpakking
23 cm
Gewicht verpakking
2.3 kg
