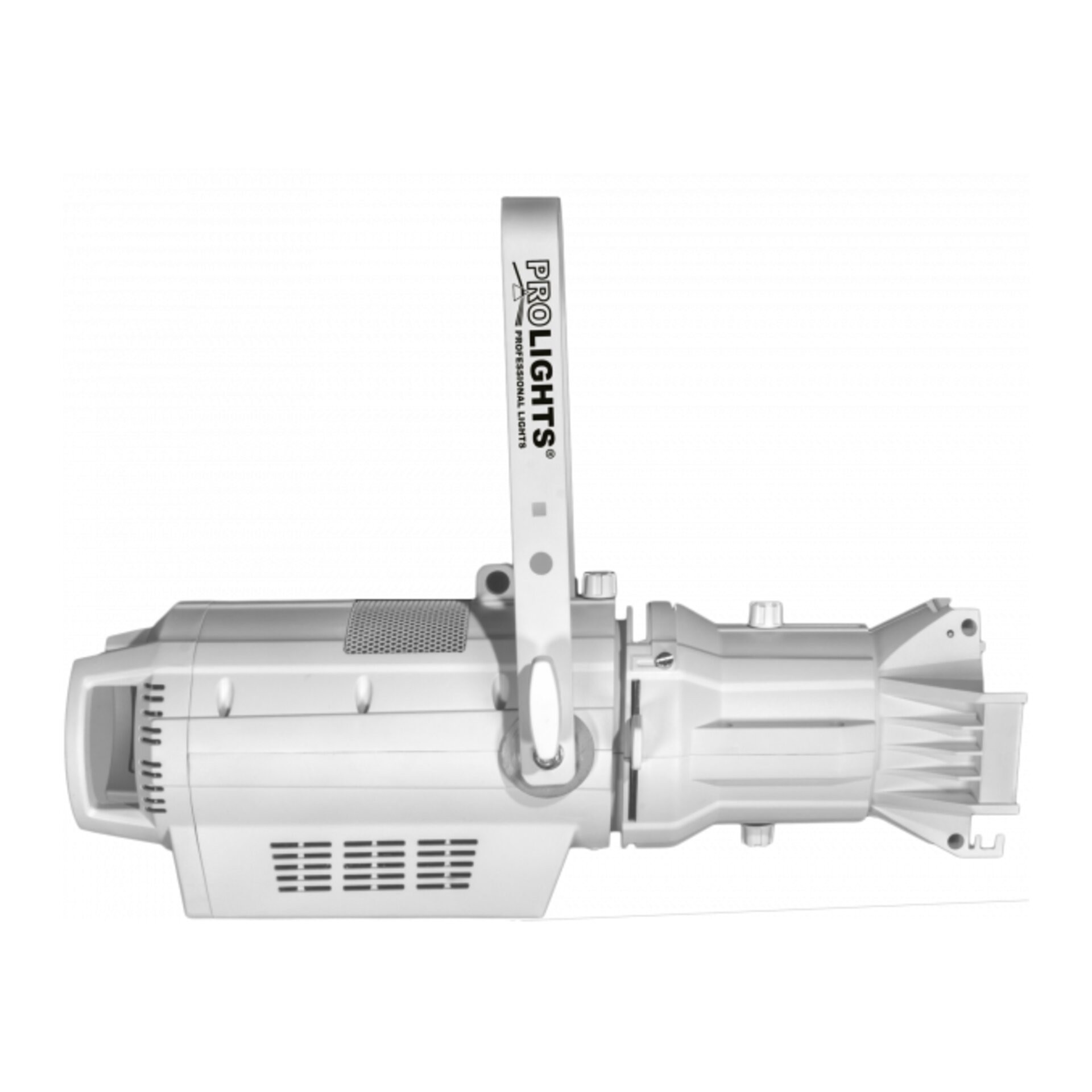

Prolights EclProfile DY W HD

21-00151

  • 200W Led 5600K profielspot
  • Kleur: wit
  • incl. messen, excl. optiek

Omschrijving:

EclProfile HD is een echte LED-vervanging voor de traditionele 750 W tungsten ellipsvormige armatuur. Het optische systeem benut de kracht van een 200W COB LED om een gelijkmatige bundel te creëren met scherpe shutter cuts en een mooie scherpe of zachte rand gobo-focusing.

Met HD-dimming en beschikbaar in 3.100 K of 5.000 K, levert de EclProfile HD de prestaties en kwaliteit van output die vereist zijn voor dit niveau van armatuur.

Merk

Product niet meer leverbaar

  • accessoires (18)
  • productspecificaties
  • gerelateerde producten

Prolights FCL ECL

21-20150

Prolights FCL ECL
  • Flightcase voor 8 x ECL profiel FC of HD
  • Kleur: zwart
Bruto prijs:
€ 860,00

Prolights ECL LZ 1530

21-20151

Prolights ECL LZ 1530
  • Zoomlens voor de ECLFC of ECLHD profiel
  • kleur: zwart
  • zoom van 15° tot 30°
Bruto prijs:
€ 460,00

Prolights ECL LZ 2550

21-20152

Prolights ECL LZ 2550
  • Zoomlens voor de ECLFC of ECLHD profiel
  • Kleur: zwart
  • Zoom van 25° tot 50°
Bruto prijs:
€ 400,00

ProTruss C 6016 B

24-00173

ProTruss C 6016 B
  • Quick trigger
  • SWL: 250kg, zwart
  • 48-51mm buis
Bruto prijs:
€ 19,20

ProTruss C 6040 B

24-00190

ProTruss C 6040 B
  • Halfcoupler voor TV spigot
  • SWL: 200kg, zwart
  • 48-51mm buis
Bruto prijs:
€ 30,50

ProTruss RSR 0630 B

24-00246

ProTruss RSR 0630 B
  • Safety kabel, lengte 60cm
  • 3mm, maximaal 25kg
  • Kleur: zwart
Bruto prijs:
€ 4,80

GDE PowerCon verlengkabel

Meerdere opties

GDE PowerCon verlengkabel
  • 3x2,5mm2 TH07 PowerCon verlengkabel
  • PowerCon male kabeldeel 20A
  • PowerCon female kabeldeel 20A
Bruto prijs:
€ 40,00

ProAudio Tour 53415BK

Meerdere opties

ProAudio Tour 53415BK
  • 5 polige DMX kabel, zwarte kabel
  • Neutrik XLR 5p female
  • Neutrik XLR 5p male
Bruto prijs:
€ 50,00

ProTruss SPGM10

24-01400

ProTruss SPGM10
  • 28mm spigot
  • M10
Bruto prijs:
€ 10,50

ProTruss SPGM12

24-01399

ProTruss SPGM12
  • 28mm spigot
  • M12
Bruto prijs:
€ 10,70

ProLights UPBOXPRO

21-21073

ProLights UPBOXPRO
  • Prolights firmware upload tool
  • USB & DMX
  • 5-pin XLR DMX OUT connector
Bruto prijs:
€ 170,00

CQ - PowerCon 20A 1,5m

52-20037

CQ - PowerCon 20A 1,5m
  • 3x1,5mm2 PowerCon Aansluitkabel, 1,5m
  • Schuko 16A male stekker
  • PowerCon 20A blauw female kabeldeel
Bruto prijs:
€ 24,80

Gegevens

Algemeen

Artikelnummer 21-00151
Merk ProLights
Artikelnummer fabrikant ECLHDDYWH
Garantie 2 jaar

Lamp eigenschappen

KleursysteemMono-color
Vermogen200W

Lichtbron

Lichtbron200W high-power white LED
CCTDY 5.000K
Luminous flux(26°) TU 12'323 lm - DY 15'526lm
LuxDY: (19°) 24'769 lx - (26°) 17'749 lx - (36°) 10'992lx - (50°) 5'109lx @3 m
Levensverwachting lichtbron > 50.000 h
CRI(TU) > 90; (DY) > 80

Optiek

Lens type high-quality glass lens optics
Min. Zoombereik10
Max. Zoombereik45
BedieningHandmatig

Effecten

Gobo maatB, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm

Behuizing

Kleur behuizingWit
Materiaal sturdy die-cast aluminium body

Aansturing

Protocollen DMX512
DMX kanalen1 / 2 / 5 channel
Master/Slave for synchronised operation of more units linked in a chain
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM ready for remote monitoring and settings

Electronics

Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free operation
Display accu self-charging battery backup
Selecteerbare PWM frequentie 600 ~ 25.000 Hz

Elektrische eigenschappen

Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik226W
Output (at 230V)7 units on a single power line

Fysieke eigenschappen

Koeling combination of heat pipe cooling system and low noise fan
Bevestiging bracket for hanging and positioning
Signaal aansluiting Amphenol XLR 5p IN/OUT connectors
StroomaansluitingPowerCon
IP waarde20, IP20

Logistieke eigenschappen

Hoogte verpakking 52.6 cm
Breedte verpakking 52.8 cm
Diepte verpakking 34.2 cm
Gewicht verpakking 9.2 kg
